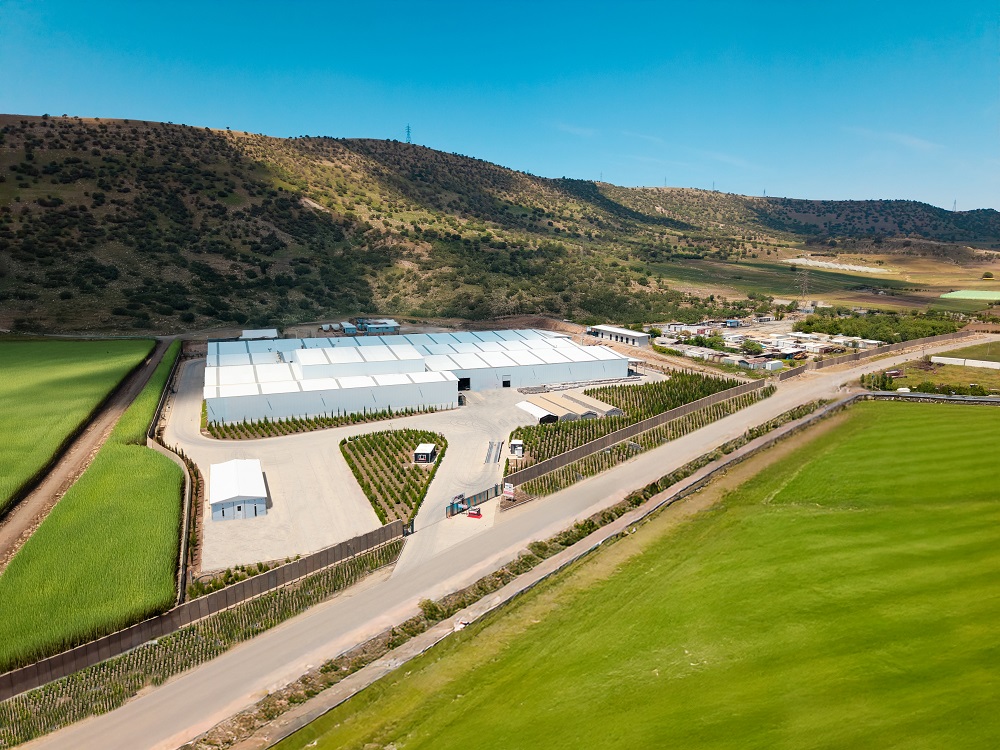

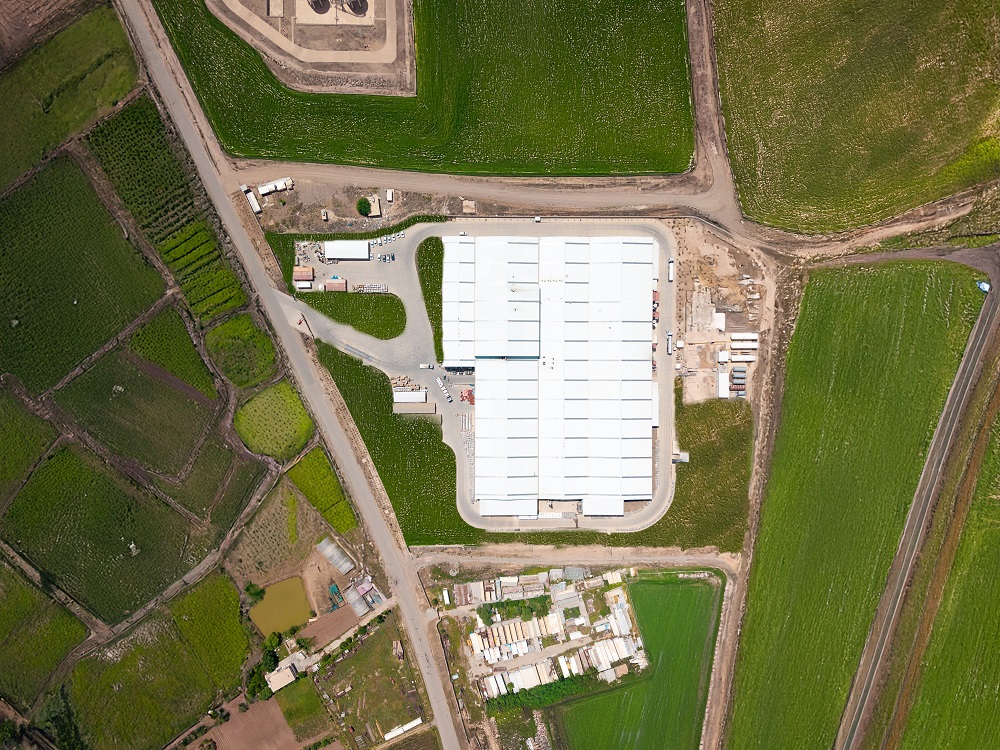

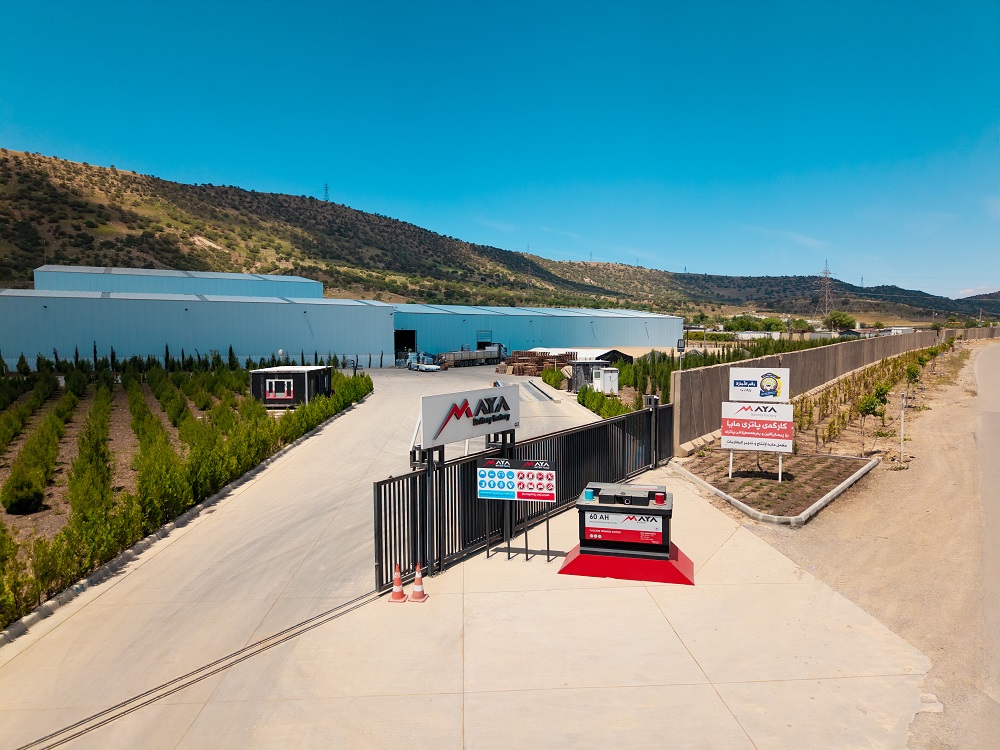

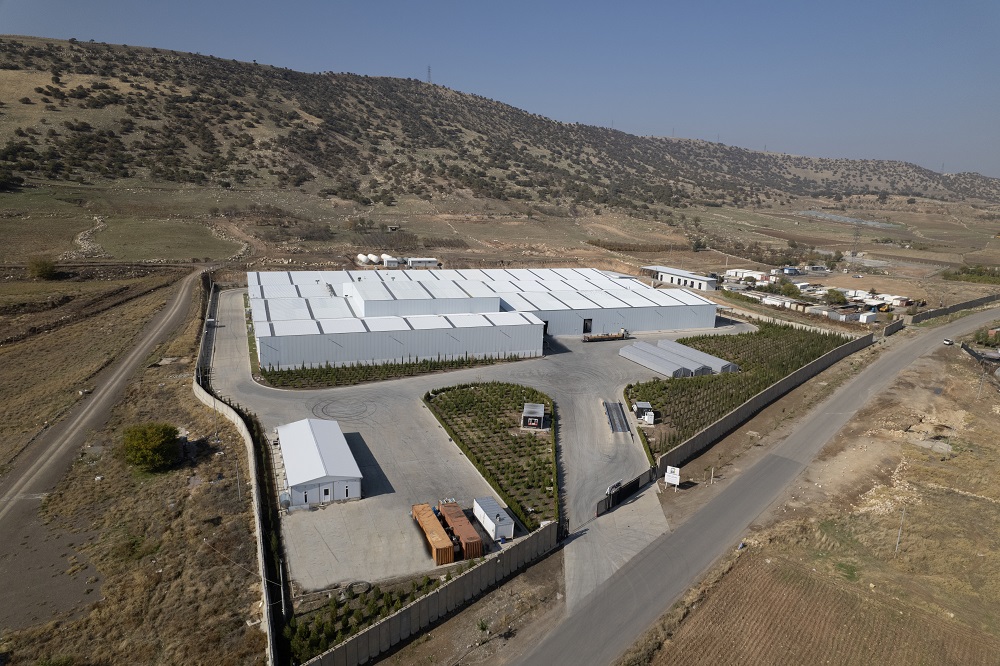

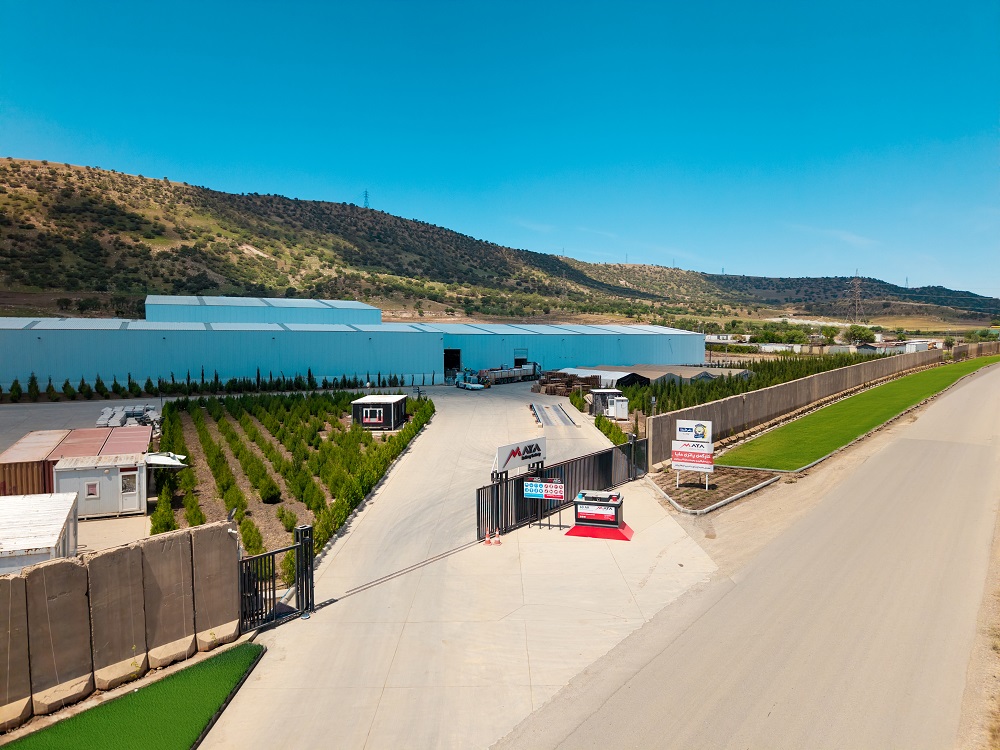

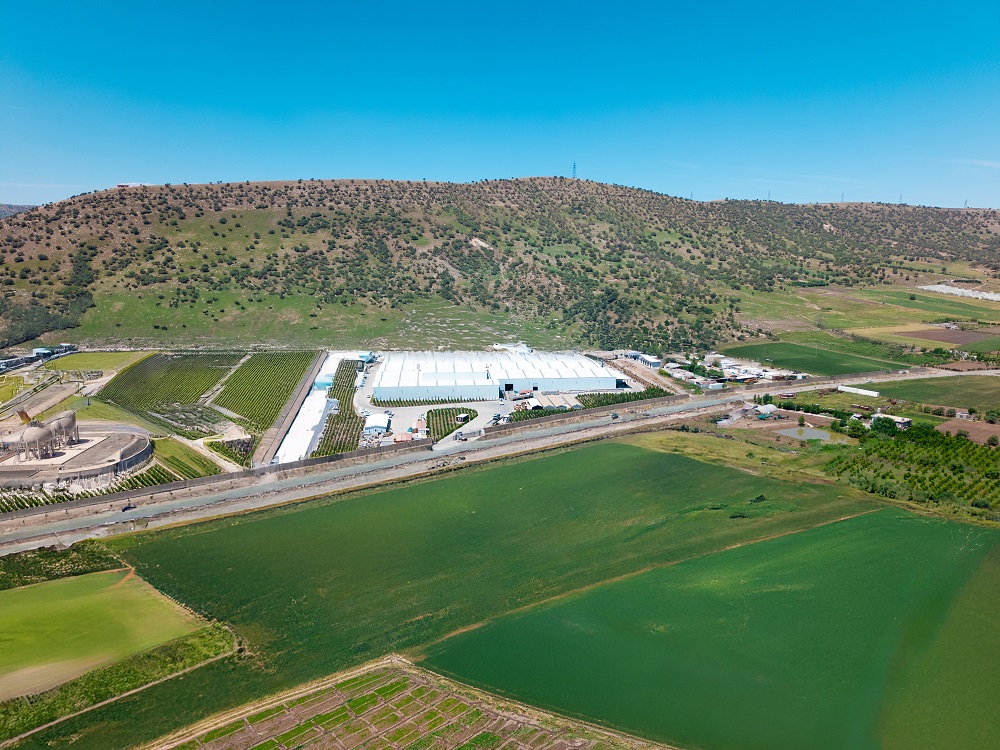

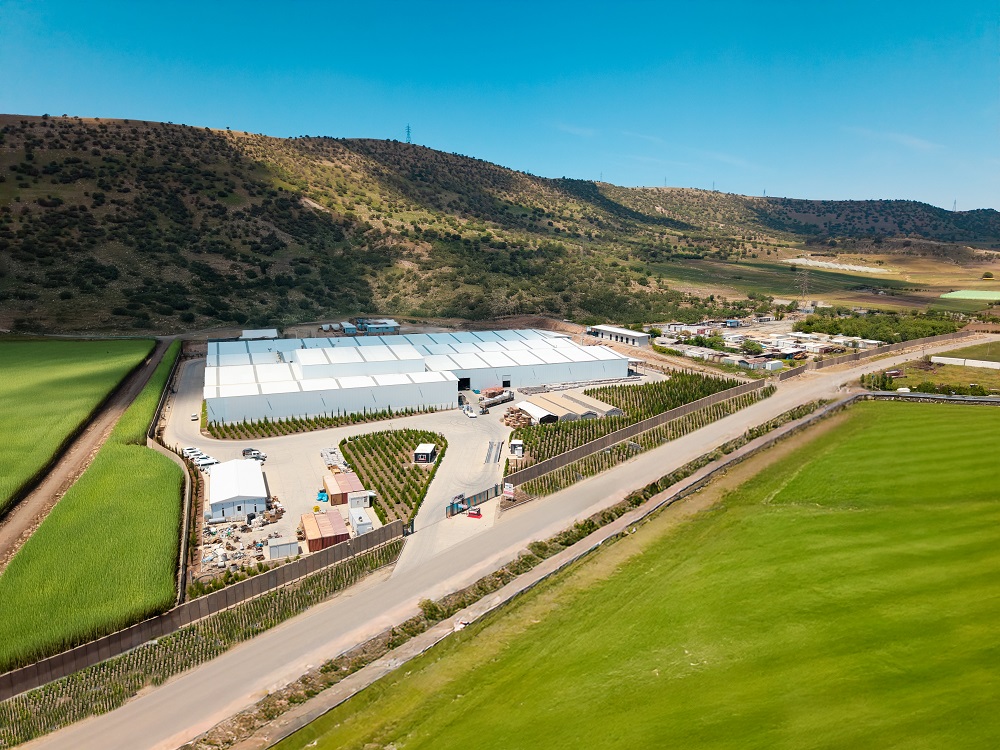

Our Plant

International Standard Plant Producing 1 Million SLI SMF Batteries Per Annum

Delivering Future Battery Power

We are an International standard battery manufacturing plant producing lead acid batteries with an installed capacity of 1 million SLI SMF battery per year.

Our plant is equipped with latest technologies , powered with international standard with environment friendly operations.

1 Million

Batteries Manufacturing Facility Per Annum.

3 Million

Extended Batteries Manufacturing Facility Per Annum In our factory.

Machinery & Technology

We use SOVEMA (CW320/14) , Sovema’s breakthrough solution combines lead strip production and punching into a single line. Its “Cast & Punch” line produces punched grids with continuous flow form lead ingots to finished products.
Key Features
  • Compact footprint
  • Combined "CAST & PUNCH" operation eliminates the need to stock semi-finished products thus reducing WIP
  • The continuous flow of scrap returns from the punching unit guarantees a constant proportion of material with respect to the input lead ingots, optimizing the new allow batch preparation
  • No stress on the grid thanks to the continuous process flow
  • Production of rolled strips with a reduction ratio of 90%-95%, providing high corrosion resistance

Specification Of Plant

Our Plant operations are European standard while we have facilities providing state of the art facility to power up production for the future battery power, our plant key fact includes
Total Plot Area
70,736
SQM
Shop Floor
17,583
SQM
Weighing Bridge Facility
100+
TON
Dry Dust Collection System
120,000
Cubic Meter Per Hour
Exhaust System
40,000
Cubic Meter Per Hour
Waste Water Treatment
9,000
Littre Per Hour

Manufacturing Process

Our Plant manufacturing process includes the followings
Pasting line The drum paster from Italy is designed especially for pasting grids produced in a continuous process by punching technology, with a special adjustment to allow the proper centering of the grid, resulting in a homogeneous over-pasting on both sides and uniform thickness of the grid.
Wide strip casting The WSC machine from Italy utilizes a laser system for continuous strip thickness control with a precision of 1.5µm to guarantee consistent thickness. This machine produces a high-quality lead strip with high corrosion resistance, paste adhesion and material strength.
Punching The punch plus machine from Italy provides high-speed production of punched grids through a continuous, lubricant-free strip flowing process. The machine ensures a clean grid with zero contamination downstream.
Curing chamber Our high-temperature curing chamber ensures higher cohesion strength of the paste and adhesion strength between the paste and grid, resulting in better cranking performance and a higher cycle life of the battery.
Assembly The assembly line from Italy with robotic plate handling, cos mold with multi-zone temperature control, high-precision combi machine and heat sealer are designed to deliver a high-quality battery.
Injection molding Our in-house injection molding facility from Korea produces all the plastic parts required for the battery, where premium grade pp granules are used to produce a long-lasting battery casing in extreme climate conditions under the car bonnet.
Charging and formation The automatic formation system from Italy is equipped with smart charging and temperature control by microprocessor to ensure efficient charging for better performance. On the high-precision finishing line, each battery is electronically tested before packaging.

Quality Standards

We operate the most advanced technology with fully automatic machinery plant which is an European standard specification . Our production produce world class batteries following European classification and standards while our team consist of project professional with rich experience from European international markets.
DIN - Deutsches Institut für Normung (German Institute for standardization)
German Industrial Standard used across the Europe.
JIS - Japanese Industrial Standard
Useful technique for monitoring batteries for Lead Acid batteries for automobiles.
